2-Pack 12631742690 V23134-E52-X344 12V 5-Pin SPDT Salmon Relay, Replacement for 12-63-1-742-690 12630153635 54347190724, Fits BMW 1992-2016 Secondary Air SMG Convertible Top

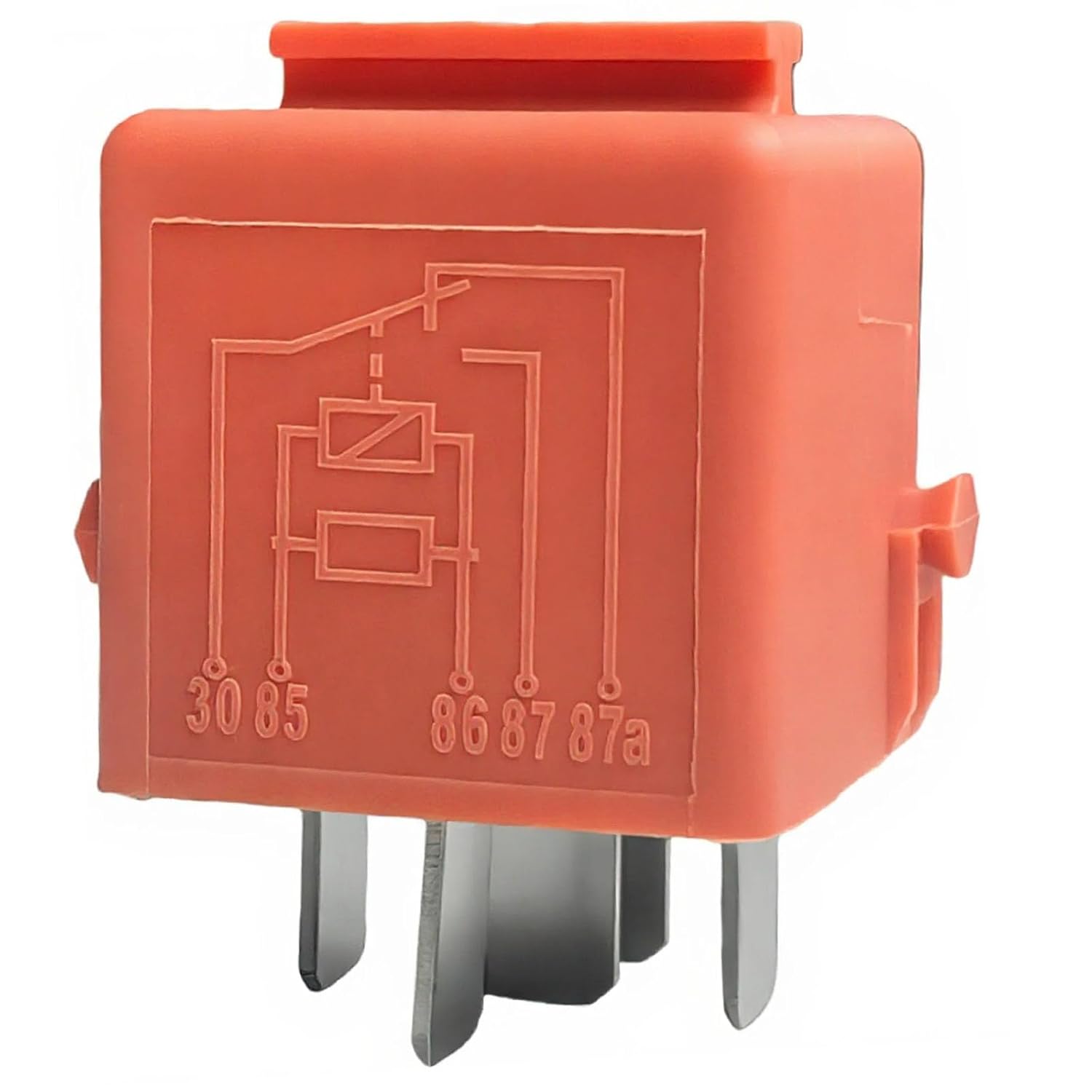

This 2-pack V23134-E52-X344 salmon 5-pin relay is a replacement relay for selected applications Compatible with BMW vehicles using part numbers 12631742690, 12-63-1-742-690, 12630153635 and 54347190724.The relay uses a 12V SPDT Mini-ISO 5-pin layout with terminals 30, 85, 86, 87 and 87a. Depending on vehicle configuration, it may be used in secondary air pump, SMG hydraulic pump, convertible top or hardtop motor, vacuum pump, rear-window and other relay-controlled circuits.Package includes: 2 salmon 5-pin relaysReplace by matching: part number, relay color, pin layout, socket footprint and original relay markingTypical locations: engine bay relay carrier, E-box, trunk or hydraulic pump relay area depending on modelInstallation note: disconnect the battery before service, remove the old relay, align the pins, seat fully and test the circuit after installationAlways confirm compatibility by VIN, wiring diagram and original relay marking before purchase. Relay holder, socket and wiring terminals are not included.

• [OE NUMBER & SPECS] 2-pack 12V 5-pin SPDT salmon relay with Mini-ISO plug-in blade terminals and pin layout 30/85/86/87/87a. Replacement for 12631742690, 12-63-1-742-690, 12630153635 and 54347190724. Compare the original relay color, part number, pin pattern and socket position before ordering.
• [COMMON CIRCUIT USES] Compatible with selected BMW relay-controlled circuits, commonly including secondary air pump, SMG hydraulic pump, convertible top or hardtop motor, vacuum pump, rear-window and other multi-purpose relay locations. Confirm the exact circuit by VIN, wiring diagram and original relay marking before replacement.
• [1 SERIES COMPATIBILITY] Compatible with BMW 1 Series E82/E88 2008-2013 selected models including 128i, 135i, 135is and 2011-2012 1M where OE 12631742690 salmon 5-prong relay is used. Always verify by original relay marking, color and 5-pin socket footprint.
• [2 & 4 SERIES COMPATIBILITY] Compatible with BMW 2 Series F22/F23 2014-2021 selected models including 228i, 230i, M235i and M240i. Compatible with BMW 4 Series F32/F33/F36 2014-2020 selected 428i, 430i, 435i and 440i, plus F82/F83 2015-2020 M4 applications using this relay number.
• [3 SERIES E36/E46 COMPATIBILITY] Compatible with BMW 3 Series E36 1992-1999 selected models including 318i, 323is, 325i, 328i and M3, plus E36/5 1995-1999 318ti. Compatible with BMW 3 Series E46 1999-2005 selected 320i, 323i, 325i, 328i, 330i and M3 coupe, sedan, wagon and convertible applications.
• [3 SERIES E90-E93 COMPATIBILITY] Compatible with BMW 3 Series E90/E91/E92/E93 2006-2013 selected models including 323i, 325i, 328i, 330i, 335i and M3. Use only where the original relay matches 12631742690 or V23134-E52-X344, salmon color and 30/85/86/87/87a terminal layout.
• [5 SERIES COMPATIBILITY] Compatible with BMW 5 Series E39 1997-2003 selected models including 525i, 528i, 530i, 540i and M5. Compatible with BMW 5 Series E60/E61 2004-2010 selected 525i, 528i, 530i, 535i, 545i, 550i and M5 relay locations using salmon 5-pin relay 12631742690.
• [6 & 7 SERIES COMPATIBILITY] Compatible with BMW 6 Series E63/E64 2004-2010 selected 645Ci, 650i and M6, plus F12/F13 2012-2018 selected 640i, 650i and M6. Compatible with BMW 7 Series E38 1995-2001, E65/E66 2002-2008 and F01/F02 2009-2015 selected relay locations.
• [X SERIES COMPATIBILITY] Compatible with BMW X1 E84 2013-2015, X3 E83 2004-2010 and X5 E53 2000-2006 selected applications using 12631742690 salmon 5-prong relay. Vehicle options may vary; confirm by VIN, relay carrier position, original number and pin layout before purchase.
• [Z SERIES & INSTALL CHECK] Compatible with BMW Z3 1996-2002, Z8 2000-2003, Z4 E85/E86 2003-2008 and Z4 E89 2009-2016 selected applications. Relay holder, socket and wiring terminals are not included. Match OE number, salmon color, 5-pin layout and socket footprint before installation.
